High Performance, Integrated Design, Easy Maintenance

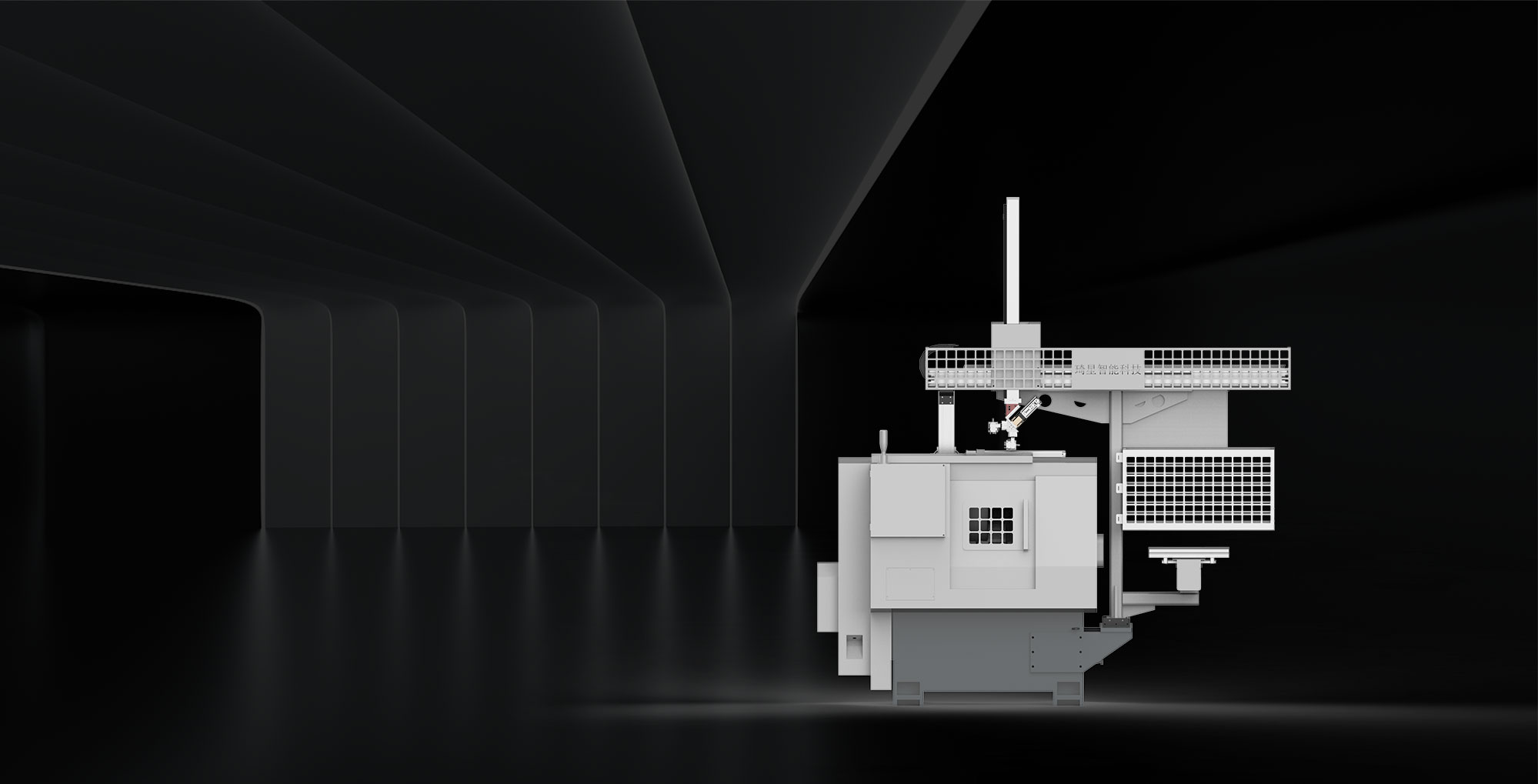

The gantry four-axis tray-type manipulator consists of four axes in terms of electrical control: X-axis for left-right movement, Z-axis for up-down movement, Y-axis for forward-backward tray movement, and R-axis for 180° rotation switching unit of the servo The electrical system adopts a handheld teach pendant matched with a high-performance bus absolute servo control system. The left and right axes are equipped with precision rack-and-pinion and linear slide rail modules, together with high-quality mechanical grippers and electrical components.
